「OpenSSH」CentOS7.x 上升级OpenSSH到最新版本

一、yum 仓库中并没有最新版的 OpenSSH，我们需要自己从官方下载最新的opeenSSh源码包编译制作 rpm 安装包。

因为客户服务器不能连外网，所以还需要将其做成离线升级包。

二、实验环境

操作系统： CentOS7.7

serverA 192.168.1.4 模拟能联网，用于制作离线升级包

serverB 192.168.1.6 模拟不能联网，openSSH相关包及其依赖版本较低

三、实验预期

在severA上完成openSSH相关编译及依赖下载，写成一键升级脚本，拖到serverB上完成openSSH的升级。

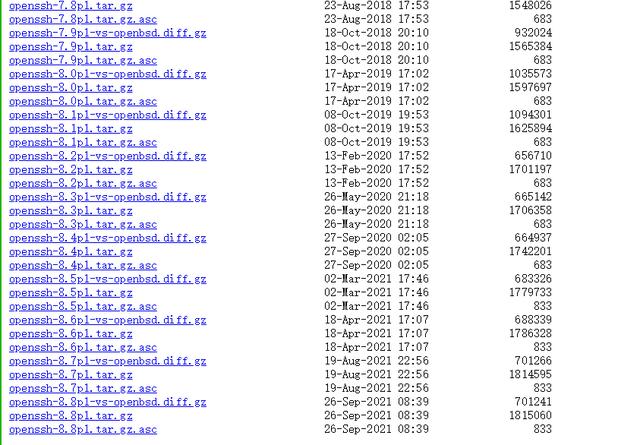

OpenSSH源码包官网：http://www.openssh.com

截止目前，最新OpenSSH源码包版本为 openssh-8.8p1.tar.gz

四、实验操作

在serverA

yum -y install vim wget epel-release

yum -y install rpm-build gcc make

yum -y install openssl openssl-devel krb5-devel pam-devel libX11-devel xmkmf libXt-devel gtk2-devel

wget http://ftp.openbsd.org/pub/OpenBSD/OpenSSH/portable/openssh-8.8p1.tar.gz

wget https://src.fedoraproject.org/repo/pkgs/openssh/x11-ssh-askpass-1.2.4.1.tar.gz/8f2e41f3f7eaa8543a2440454637f3c3/x11-ssh-askpass-1.2.4.1.tar.gz

tar -zxf openssh-8.8p1.tar.gz

mkdir -p /root/rpmbuild/{SOURCES,SPECS}

cp ./openssh-8.8p1/contrib/redhat/openssh.spec /root/rpmbuild/SPECS/

cp openssh-8.8p1.tar.gz /root/rpmbuild/SOURCES/

mv x11-ssh-askpass-1.2.4.1.tar.gz /root/rpmbuild/SOURCES

cd /root/rpmbuild/SPECS/

sed -i -e "s/%define no_gnome_askpass 0/%define no_gnome_askpass 1/g" openssh.spec

sed -i -e "s/%define no_x11_askpass 0/%define no_x11_askpass 1/g" openssh.spec

sed -i -e "s/BuildPreReq/BuildRequires/g" openssh.spec

sed -i -e "s/BuildRequires: openssl-devel < 1.1/#BuildRequires: openssl-devel < 1.1/g" openssh.spec

rpmbuild -bb openssh.spec

编译好后的文件被放在 /root/rpmbuild/RPMS/x86_64/ 目录下：

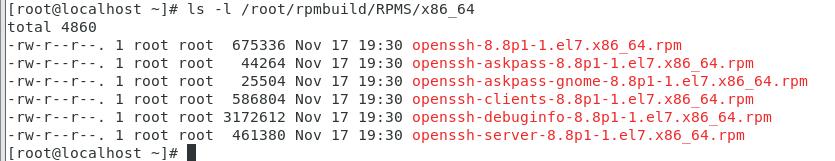

# ls -l /root/rpmbuild/RPMS/x86_64

将上述操作脚本化：

cat openssh.sh

#####################################################

#!/bin/bash

OPENSSH_VERSION=8.8p1

yum -y install vim wget epel-release

yum -y install rpm-build gcc make

yum -y install openssl openssl-devel krb5-devel pam-devel libX11-devel xmkmf libXt-devel gtk2-devel

cd /root

wget http://ftp.openbsd.org/pub/OpenBSD/OpenSSH/portable/openssh-${OPENSSH_VERSION}.tar.gz

wget https://src.fedoraproject.org/repo/pkgs/openssh/x11-ssh-askpass-1.2.4.1.tar.gz/8f2e41f3f7eaa8543a2440454637f3c3/x11-ssh-askpass-1.2.4.1.tar.gz

tar -zxf openssh-${OPENSSH_VERSION}.tar.gz

mkdir -p /root/rpmbuild/{SOURCES,SPECS}

cp ./openssh-${OPENSSH_VERSION}/contrib/redhat/openssh.spec /root/rpmbuild/SPECS/

cp openssh-${OPENSSH_VERSION}.tar.gz /root/rpmbuild/SOURCES/

mv x11-ssh-askpass-1.2.4.1.tar.gz /root/rpmbuild/SOURCES

cd /root/rpmbuild/SPECS/

sed -i -e "s/%define no_gnome_askpass 0/%define no_gnome_askpass 1/g" openssh.spec

sed -i -e "s/%define no_x11_askpass 0/%define no_x11_askpass 1/g" openssh.spec

sed -i -e "s/BuildPreReq/BuildRequires/g" openssh.spec

sed -i -e "s/BuildRequires: openssl-devel < 1.1/#BuildRequires: openssl-devel < 1.1/g" openssh.spec

rpmbuild -bb openssh.spec

ls -l /root/rpmbuild/RPMS/x86_64

########################################################

五、在开发机上做openSSH升级测试

在serverA

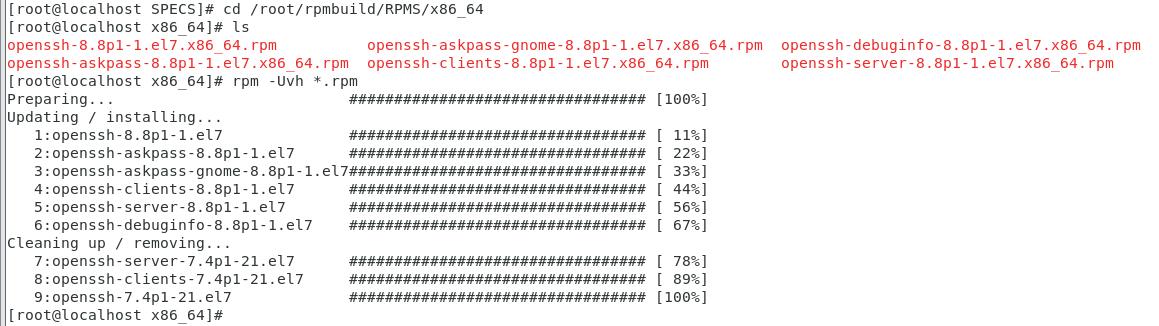

cd /root/rpmbuild/RPMS/x86_64

rpm -Uvh *.rpm

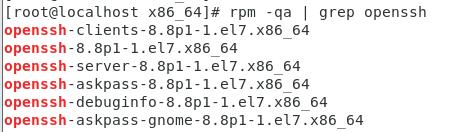

rpm -qa | grep openssh

本来到此，我们升级就完成了，但是从客户端登陆的时候却失败了！

无法用 ssh key 方式登录，默认的 host key 文件授权太大，需要修改 key 文件的权限

ll /etc/ssh/ssh_host_*_key

chmod 600 /etc/ssh/ssh_host_*_key

ll /etc/ssh/ssh_host_*_key

升级完后的openSSH默认不允许用密码方式登录，我们需要更改配置文件：

cp /etc/ssh/sshd_config /etc/ssh/sshd_config.bak

sed -i -e "s/#PasswordAuthentication yes/PasswordAuthentication yes/g" /etc/ssh/sshd_config

sed -i -e "s/#PermitRootLogin prohibit-password/PermitRootLogin yes/g" /etc/ssh/sshd_config

sed -i -e "s/#PermitEmptyPasswords no/PermitEmptyPasswords no/g" /etc/ssh/sshd_config

sed -i -e "s/#UsePAM no/UsePAM yes/g" /etc/ssh/sshd_config

默认的 /etc/pam.d/sshd 中使用了过时的 pam_stack.so 动态库，需要更新：

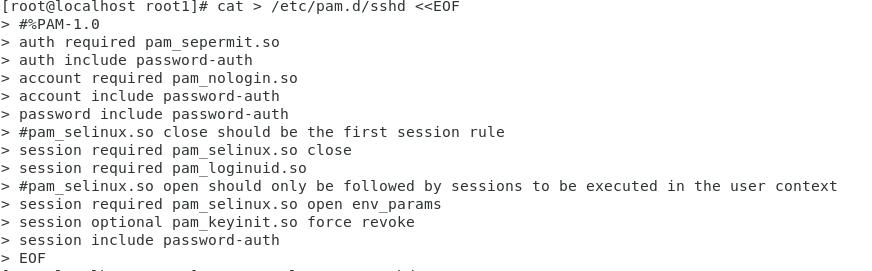

cat > /etc/pam.d/sshd <<EOF

#%PAM-1.0

auth required pam_sepermit.so

auth include password-auth

account required pam_nologin.so

account include password-auth

password include password-auth

#pam_selinux.so close should be the first session rule

session required pam_selinux.so close

session required pam_loginuid.so

#pam_selinux.so open should only be followed by sessions to be executed in the user context

session required pam_selinux.so open env_params

session optional pam_keyinit.so force revoke

session include password-auth

EOF

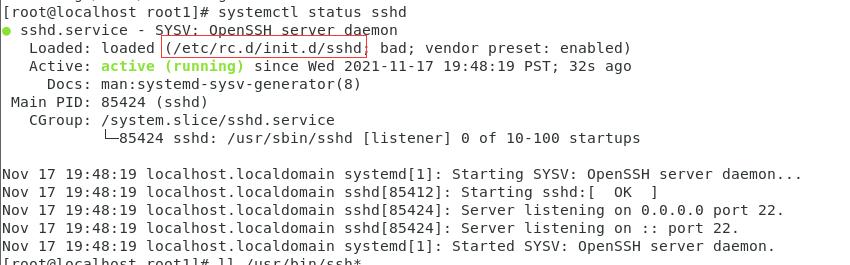

重启ssh服务，查看服务状态：

# systemctl restart sshd

# systemctl enable sshd

# systemctl status sshd

你会发现，升级后的sshd服务，是用的启动脚本，不是/usr/lib/systemd/system/sshd.service文件了。

实际上升级过程中，程序已经将 /usr/lib/systemd/system/sshd.service 删除了，并且添加了服务启动脚本 /etc/init.d/sshd

细心的你还会发现，升级完后，我们经常用于做免密登录的公钥拷贝命令 ssh-copy-id也没有了！

其实不是没有了，而是我们需要去解压后源码包拷贝到/usr/bin/目录

tar -zxf openssh-8.8p1.tar.gz

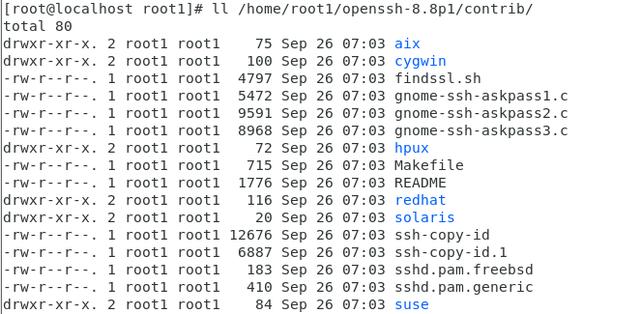

ll /root/openssh-8.8p1/contrib/

cp /root/openssh-8.8p1/contrib/ssh-copy-id /usr/bin/

chmod 755 /usr/bin/ssh-copy-id

登陆成功

六、制作离线升级安装包

在serverA

yum -y install yum-utils createrepo

mkdir /root/localrepo

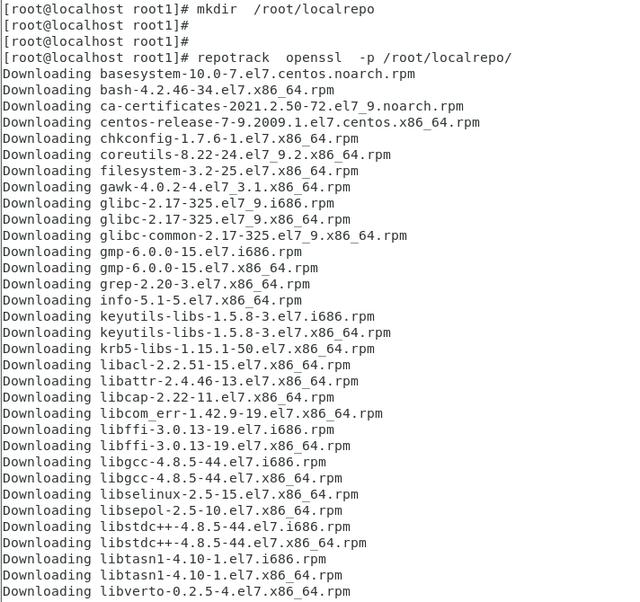

repotrack openssl -p /root/localrepo/

你可能会疑惑：不是找opennsh相关包的依赖么，怎么找的是openssl了？

其实从上面安装可以，升级opennsh版本并不会缺少依赖，我们们只是需要相应地升级一下openssl的版本：

cp /root/rpmbuild/RPMS/x86_64/*.rpm /root/localrepo

createrepo -v /root/localrepo

编写离线升级安装脚本：

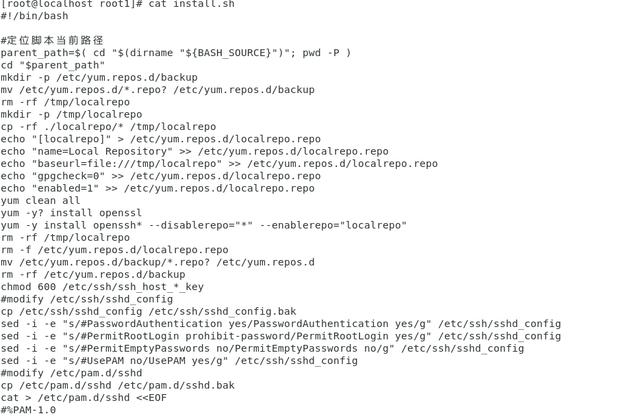

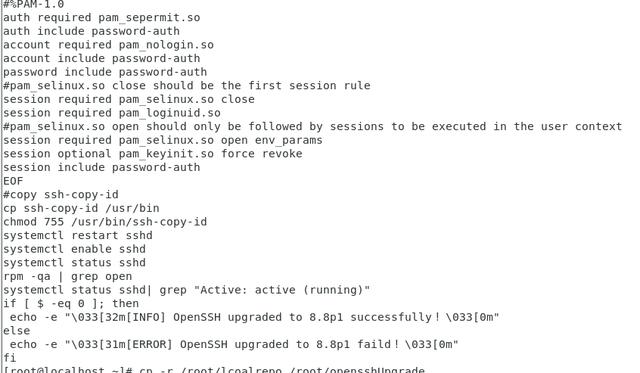

cat install.sh

######################################################

#!/bin/bash

#定位脚本当前路径

parent_path=$( cd "$(dirname "${BASH_SOURCE}")"; pwd -P )

cd "$parent_path"

mkdir -p /etc/yum.repos.d/backup

mv /etc/yum.repos.d/*.repo? /etc/yum.repos.d/backup

rm -rf /tmp/localrepo

mkdir -p /tmp/localrepo

cp -rf ./localrepo/* /tmp/localrepo

echo "[localrepo]" > /etc/yum.repos.d/localrepo.repo

echo "name=Local Repository" >> /etc/yum.repos.d/localrepo.repo

echo "baseurl=file:///tmp/localrepo" >> /etc/yum.repos.d/localrepo.repo

echo "gpgcheck=0" >> /etc/yum.repos.d/localrepo.repo

echo "enabled=1" >> /etc/yum.repos.d/localrepo.repo

yum clean all

yum -y? install openssl

yum -y install openssh* --disablerepo="*" --enablerepo="localrepo"

rm -rf /tmp/localrepo

rm -f /etc/yum.repos.d/localrepo.repo

mv /etc/yum.repos.d/backup/*.repo? /etc/yum.repos.d

rm -rf /etc/yum.repos.d/backup

chmod 600 /etc/ssh/ssh_host_*_key

#modify /etc/ssh/sshd_config

cp /etc/ssh/sshd_config /etc/ssh/sshd_config.bak

sed -i -e "s/#PasswordAuthentication yes/PasswordAuthentication yes/g" /etc/ssh/sshd_config

sed -i -e "s/#PermitRootLogin prohibit-password/PermitRootLogin yes/g" /etc/ssh/sshd_config

sed -i -e "s/#PermitEmptyPasswords no/PermitEmptyPasswords no/g" /etc/ssh/sshd_config

sed -i -e "s/#UsePAM no/UsePAM yes/g" /etc/ssh/sshd_config

#modify /etc/pam.d/sshd

cp /etc/pam.d/sshd /etc/pam.d/sshd.bak

cat > /etc/pam.d/sshd <<EOF

#%PAM-1.0

auth required pam_sepermit.so

auth include password-auth

account required pam_nologin.so

account include password-auth

password include password-auth

#pam_selinux.so close should be the first session rule

session required pam_selinux.so close

session required pam_loginuid.so

#pam_selinux.so open should only be followed by sessions to be executed in the user context

session required pam_selinux.so open env_params

session optional pam_keyinit.so force revoke

session include password-auth

EOF

#copy ssh-copy-id

cp ssh-copy-id /usr/bin

chmod 755 /usr/bin/ssh-copy-id

systemctl restart sshd

systemctl enable sshd

systemctl status sshd

rpm -qa | grep open

systemctl status sshd| grep "Active: active (running)"

if [ $ -eq 0 ]; then

echo -e "\033[32m[INFO] OpenSSH upgraded to 8.8p1 successfully！\033[0m"

else

echo -e "\033[31m[ERROR] OpenSSH upgraded to 8.8p1 faild！\033[0m"

fi

##############################################################

打包离线安装包

cd /root

mkdir opensshUpgrade

cp install.sh opensshUpgrade

cp -r /root/localrepo/ /root/opensshUpgrade/

cp /root/openssh-8.8p1/contrib/ssh-copy-id /root/opensshUpgrade

tar -zcvf openssshUpgrade.tar.gz opensshUpgrade

七、离线安装升级openSSH

将离线升级安装包 openssshUpgrade.tar.gz拷贝到serverB 服务器

tar -zxf openssshUpgrade.tar.gz

cd opensshUpgrade/

bash install.sh | tee install.log

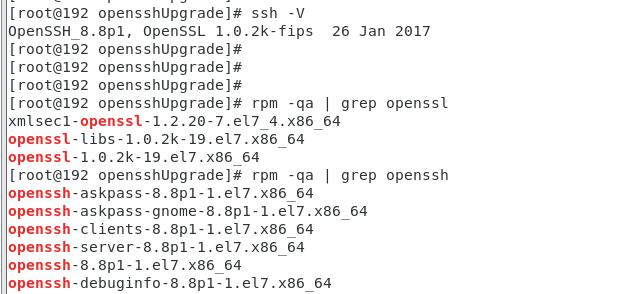

rpm -qa | grep openssl

rpm -qa | grep openssh

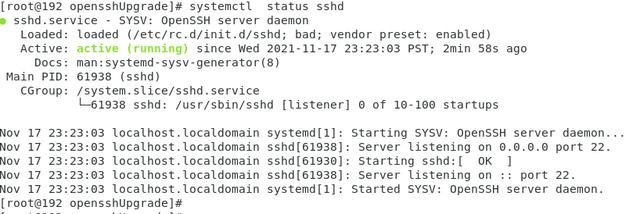

systemctl status sshd
